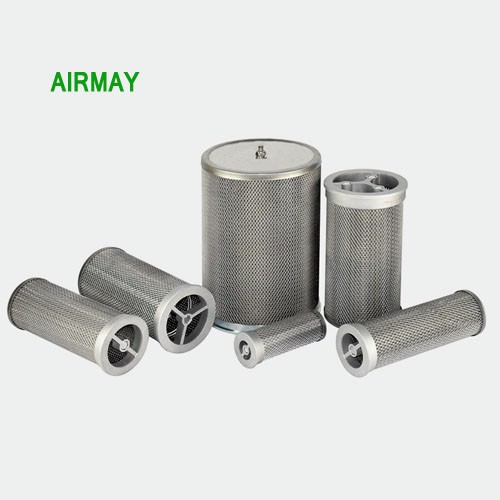

Compressed Air Diffuser ,Adsorption dryer Pneumatic Diffused Filter,
Adsorption dryer Diffuser
| MODEL | Dimensions | |||
| Nominal diameter | D1 | D2 | H | |
| KS-20 | 20 | φ42 | φ33 | 150 |
| KS-25 | 25 | φ46 | φ40 | 150 |
| KS-40 | 40 | φ61 | φ55 | 150 |
| KS-50 | 50 | φ71 | φ65 | 150 |
| KS-65 | 65 | φ86 | φ80 | 250 |
| KS-80 | 80 | φ99 | φ93 | 250 |
| KS-100 | 100 | φ118 | φ112 | 250 |
| KS-125 | 125 | φ143 | φ137 | 250 |
| KS-150 | 150 | φ169 | φ163 | 250 |
| KS-200 | 200 | φ218 | φ212 | 300 |
This series of products are mainly used for the inlet and outlet of the non-heat (micro-heat) adsorption dryer cylinder, which can diffuse, stabilize and filter the airflow. Filter precision is stainless steel filter.
Cracking Pressure:2-2.2kg/cm2
Operating Temperature:Aluminum and stainless steel＜=180℃
Stainless steel＜=300℃
Working Pressure:16KGS
Filtration Accurancy:80 grid/inch
