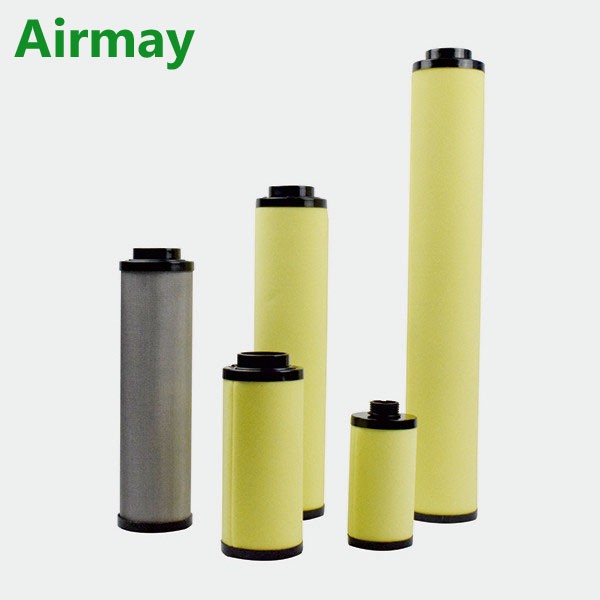

ORION compressed air in-line filter element

Grade EDS - General Purpose Protection Particle removal down to 1 micron including coalesced liquid water and oil, providing a maximum remaining oil aerosol content of 0.6 mg/m3 (<0.5 ppm) @ 21°C.



Grade EMS - High Efficiency Oil Removal Filtration
Particle removal down to 0.01 micron including water and oil aerosols, providing a maximum remaining oil aerosol content of 0.01 mg/m3 (<0.01 ppm) @ 21°C. (Precede with Grade GP filter).



Grade EKS - Activated Carbon Filtration
Oil vapour and hydrocarbon odour removal, giving a maximum remaining oil content of <0.003 mg/m3 (<0.003 ppm) (excluding methane) @ 21°C. (Precede Grade AC with Grade HE filter).



Grade ELS - General Purpose Dust Filtration
Dust particle removal down to 1 micron.


Filtration Grade

Filtration Rate

Residual Oil component

EDS

3µm

5ppm

ELS

1µm

1ppm

EMS

0.01µm

0.01ppm

EKS(Activate carbon)

0.01µm

0.003ppm

Flow Rate/NM3/MINPart No.Filtration Rating    (μm)Oil content    /PPM
0.35-0.4075DSF:35
1.2-1.4150LSF:11
1.8-2.0200MSF:0.010.01
2.4-3.7250KSF:0.01   (activated Carbon)0.003
3.9-4.4400
6.6-7.5700ELS:11
10.6-12.01000EMS:0.010.01
13.8-15.601300EDS:35
20.0-22.602000EKS:0.010.003
