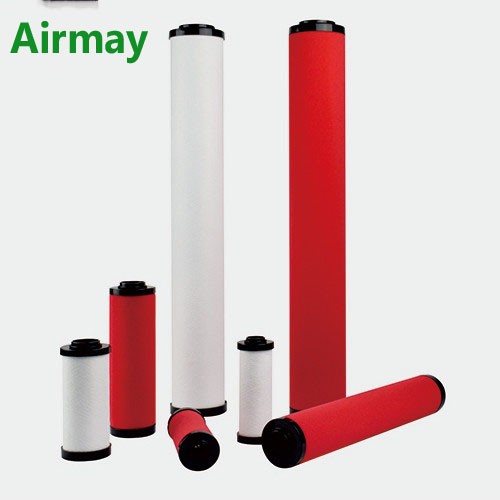

Hiross in-line filter element replacement for air compressor

Hiross in-line filter element replacement

GRADE Q
Coarse Pre-Filtration
Particle removal down to : 25 microns,
including water and oil aerosols.

GRADE P

High Efficiency General Purpose
Protection
Particle removal down to : 1 micron,
including water and oil aerosols.
Maximum remaining oil aerosol content:
0.6 mg/m3 at 21°C / 0.5 ppm(w) at 70°F.

GRADE S
High Efficiency Oil Removal Filtration
(Precede with Grade AO filter)
Particle removal down to: 0.01 micron,
including water and oil aerosols. Maximum
remaining oil aerosol content : 0.01 mg/m3
at 21°C / 0.01 ppm(w) at 70°F.

GRADE C
Oil Vapour & Odour Removal
(Precede Grade ACS with Grade AA filter)
Maximum remaining oil vapour content :
0.003 mg/m3 at 21°C / 0.003 ppm(w) at 70°F.
(Grade AC filter combines AA and AC Grades)

Grade	Q	P	S	C
Grade	Air Line Filtration (5μm)	Secondary Air line Filtration (1μm)	Oil Removal Filter (0.01μm)	Oil Vapor Removal Filter (0.01μm)
Part No.	FLOW（NMз/min）	FILTER OD mm	FILTER ID mm	FILTER HEIGHT mm	Grade
*007	0.7	51	20	118	Q/P/S/C
*015	1.5	51	20	150	Q/P/S/C
*024	2.4	61	30	150	Q/P/S/C
*035	3.5	61	30	210	Q/P/S/C
*060	6.9	61	30	360	Q/P/S/C
*090	9	86	50	390	Q/P/S/C
*120	12	86	50	650	Q/P/S/C
*150	15	86	50	750	Q/P/S/C
